Coldwell Banker :: Standard Hole Pattern
| Standard Hole Pattern |
| The following images and descriptions show the details of most of our standard sign panel hole patterns. Custom holes are available upon request. |
|
|
| |
 |
Standard Holes 24" Wide Signs:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |

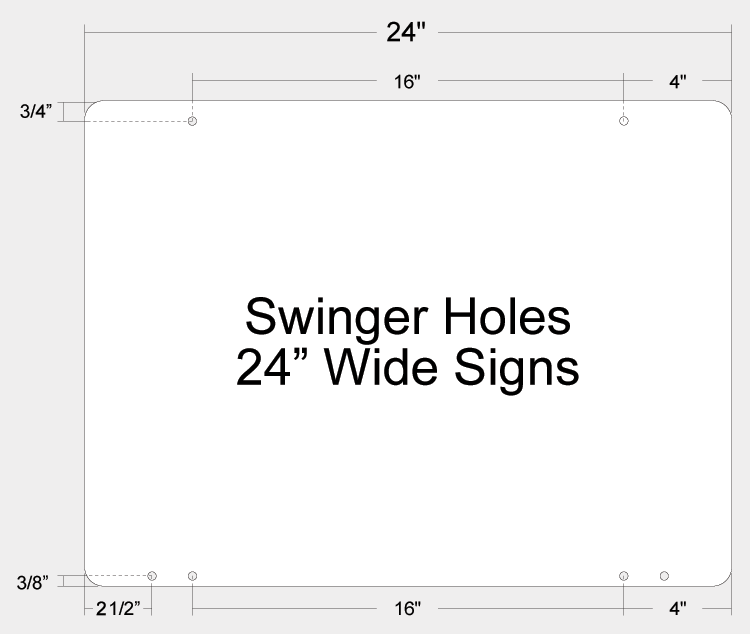

Swinger Holes 24" Wide Signs:
- Top Holes
There are two 5/16" diameter holes on the top that are 16" on center and 3/4" to center from the top edge of the panel.
- Bottom Holes
There are four 5/16" diameter holes on the bottom that are 3/8" to center from the bottom edge. The two center holes are 16" on center and the two outside holes are 2 1/2" to center from the outside edges.
|
 |

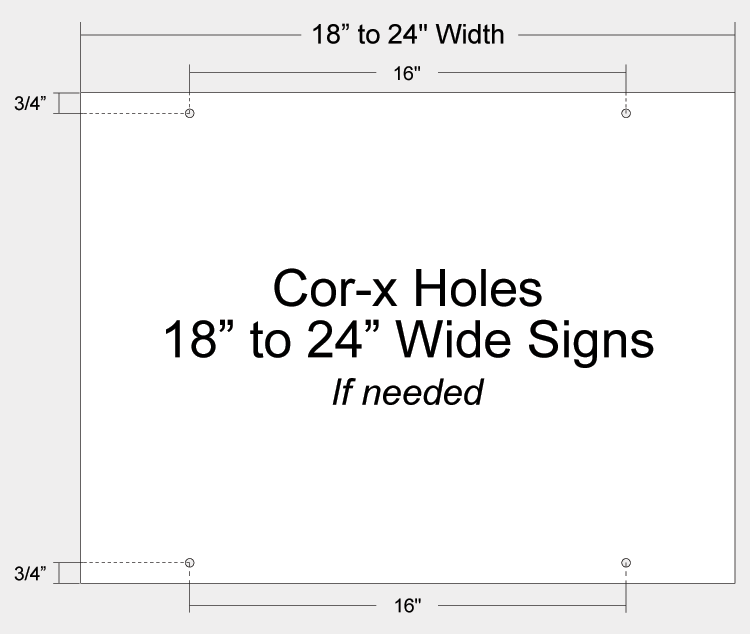

Cor-x Holes 24" Wide Signs:
- Top Holes
- All holes are 5/16" diameter.
- Two holes top and bottom 16" on center and 3/4" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |

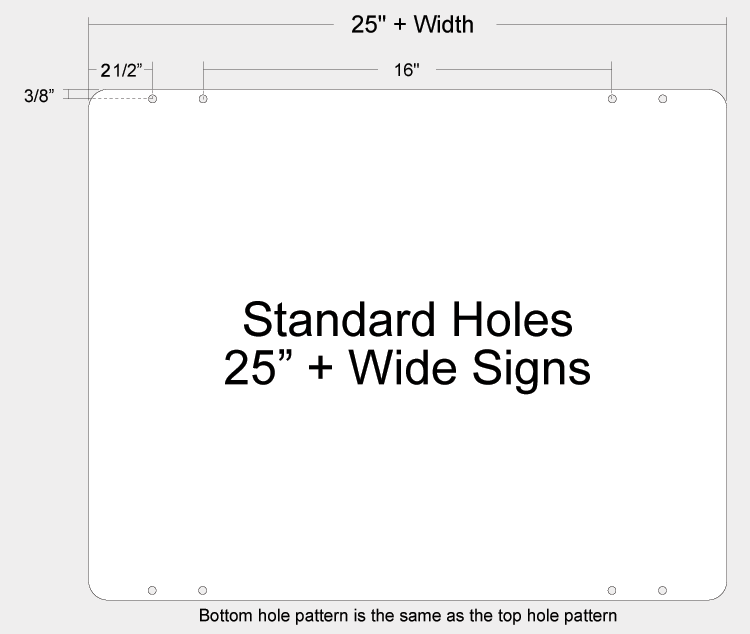

Standard Holes 25" + Wide Signs:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |

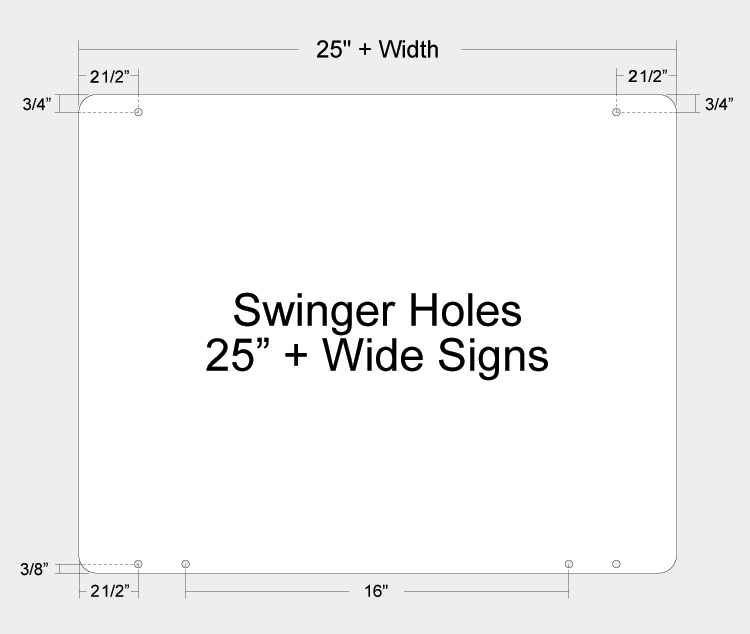

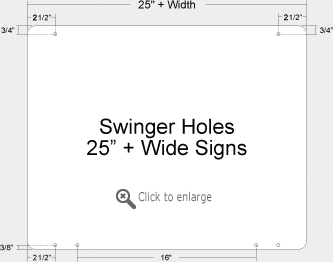

Swinger Holes 25" + Wide Signs:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |

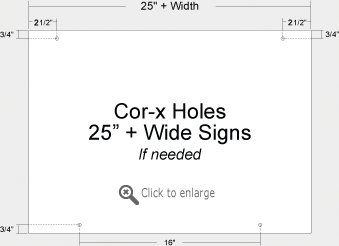

Cor-x Holes 25" + Wide Signs:
- Top Holes
- All holes are 5/16" diameter.
- Top holes are 2 1/2" to center from outside edges and 3/4" to center from the top edge.
- Bottom Holes
- Bottom holes are 16" on center and 3/4" to center from the bottom edge.
|
 |

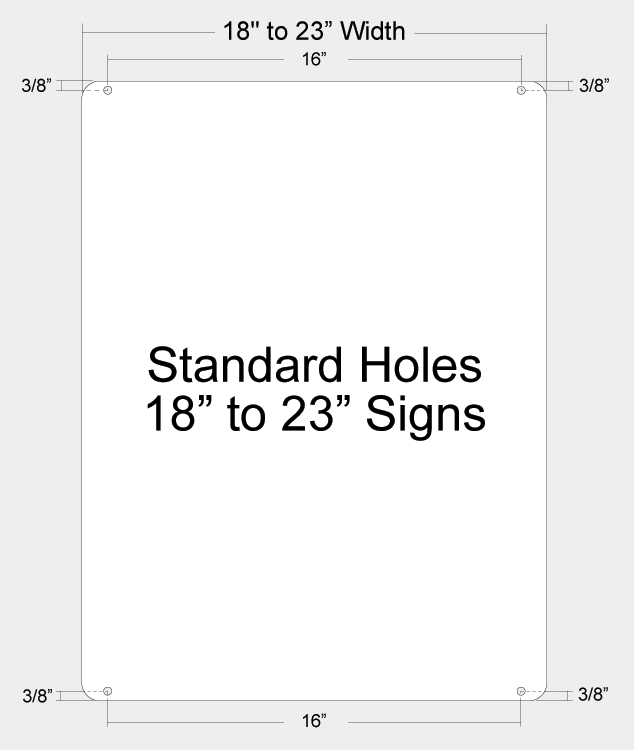

Standard Holes 18" to 23" Wide Signs:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |

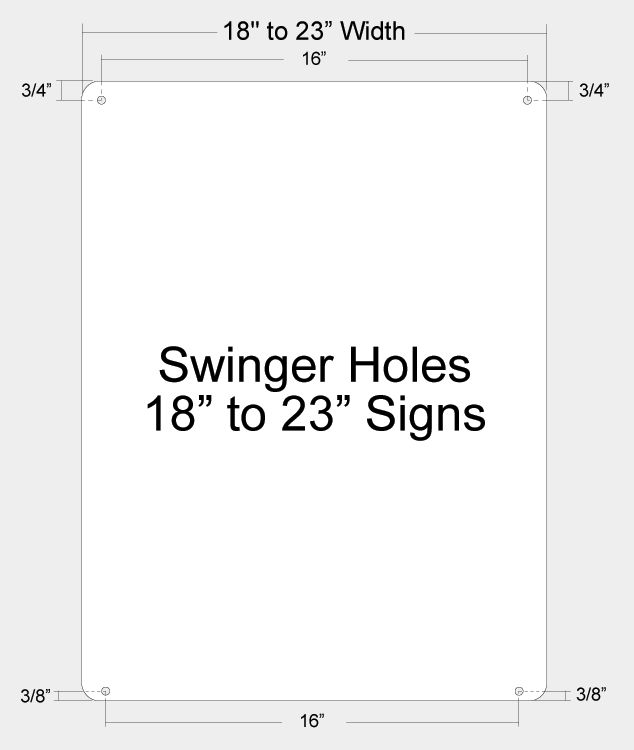

Swinger Holes 18" to 23" Wide Signs:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |
All Corner Holes:
- Top Holes
- Holes are 5/16" diameter.
- Inside two holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- All holes are 3/8" to center from the top and bottom edges.
- Bottom Holes
Same as top hole pattern.
|
 |
Dome Panel Holes:
- Top Holes
- Holes are 5/16" diameter.
- Top holes are 15" on center and 3.5" from the top of the panel to center.
- Center Holes
- Center holes are 13.5" to center from the bottom of the panel and 3/8" to center from edges.
- Bottom Holes
- Inside holes are 16" on center.
- Outside two holes are 2 1/2" to center from edges.
- Bottom holes are 3/8" to center from the bottom edge.
|
 |
Mini Hanging Sign Holes:
- Top Hole
- Holes are 5/16" diameter.
- Two holes are 14.5" on center.
- Holes are 3/8" to center from the top edge.
|
 |
FAIS Stake Holes:
- Top and Bottom Holes
- Holes are 5/16" diameter.
- There are two holes, one top and one bottom. Both holes are centered to the panel and are 3/4" to center from the top and bottom edges of the panel
|
|
|
 |
