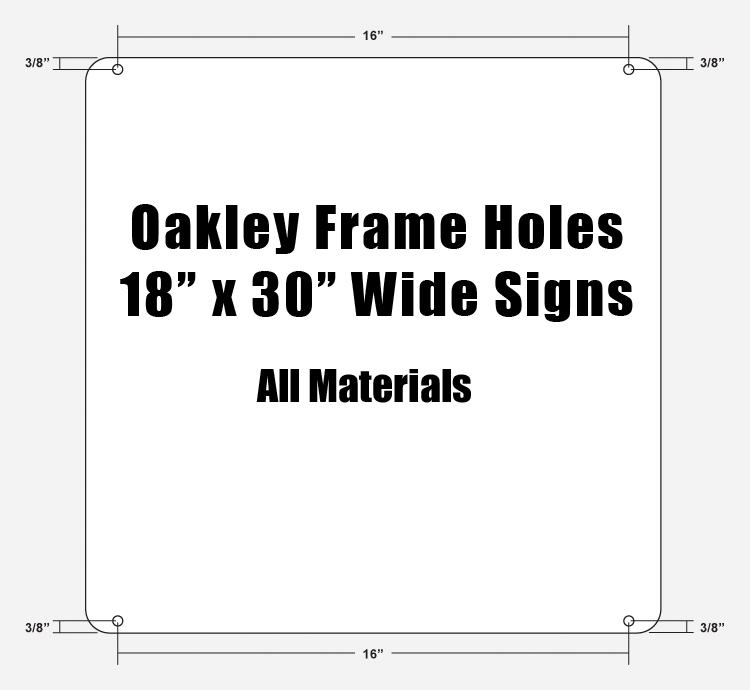

Standard Hole Pattern

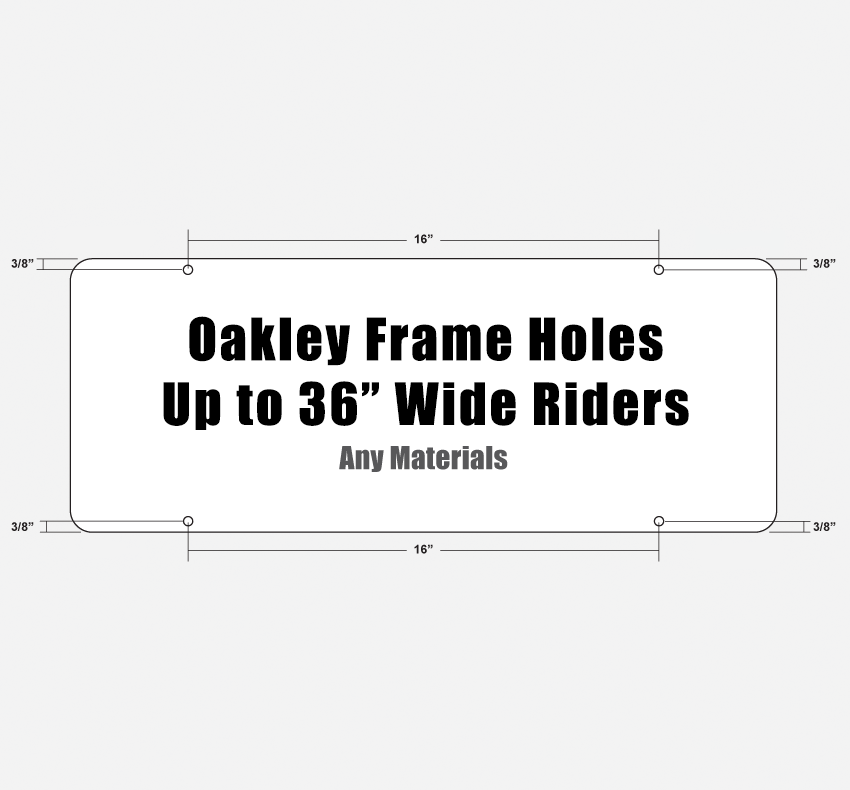

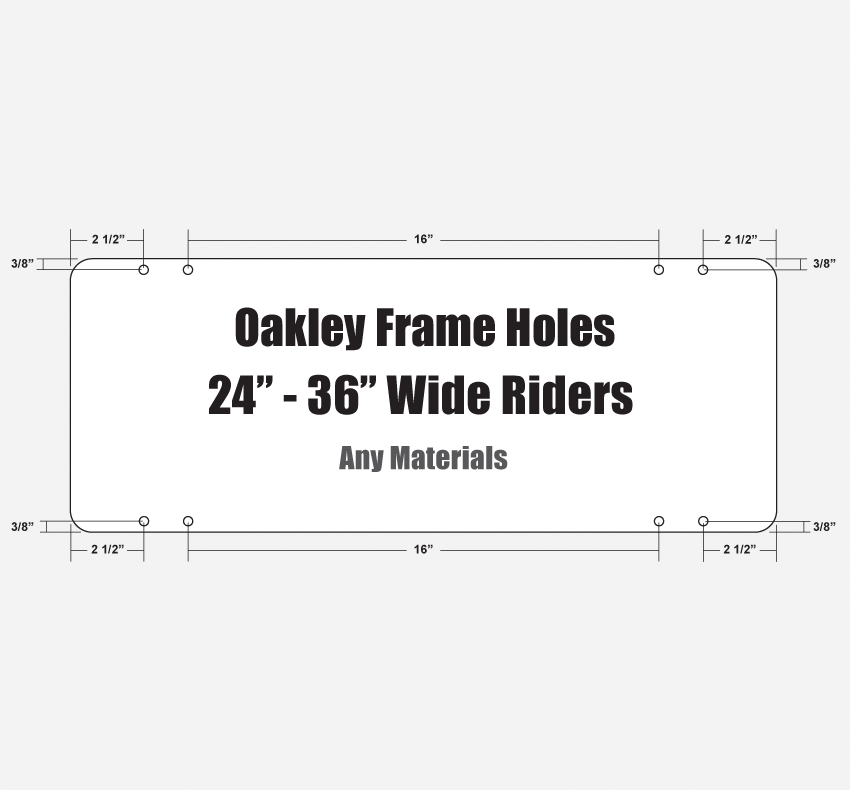

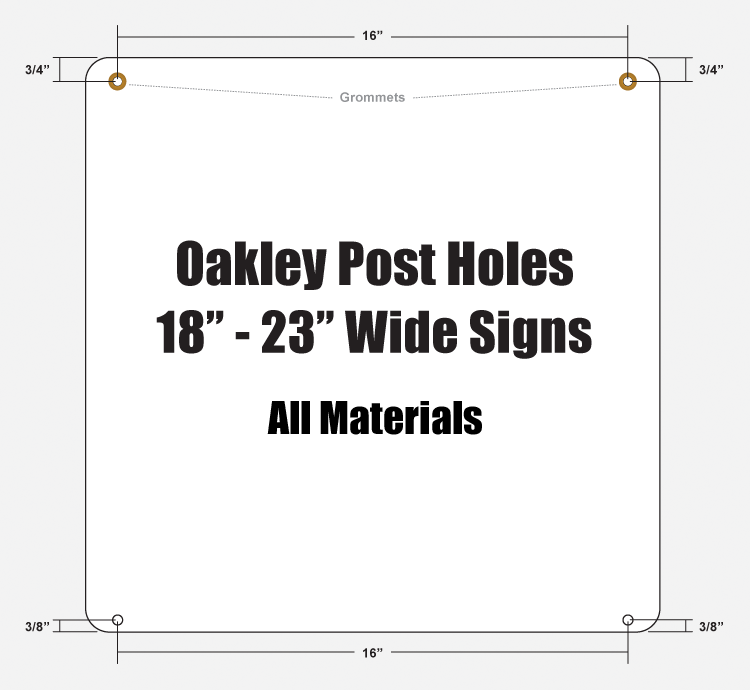

All Hole Patterns are designed to fit our frames, posts, and stakes. Please review the chart below to see which hole pattern will appear on your custom panels. All holes are 5/16" diameter round holes. Holes are measured from center of hole to edge of panel. NOTE: Sign panels do not come with bottom grommets unless requested.
Panel
Width
Material Hole Pattern Top Holes
16" on
Center
Top Holes
2.5" from
Edge
Bottom Holes
16" on
Center
Bottom Holes
2.5" from
Edge
Top
Grommets
Hole
Distance
from
Top
Hole
Distance
from
Bottom

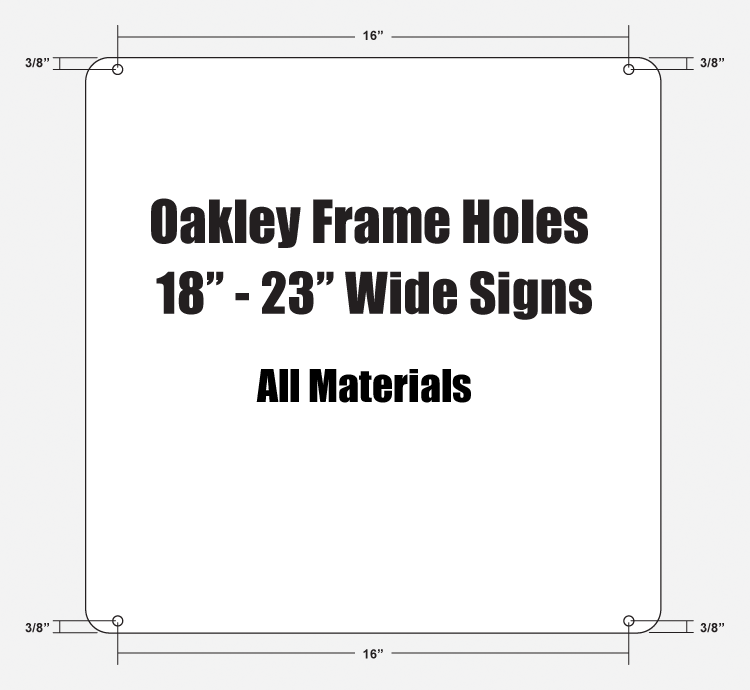

18" - 23" Aluminum Standard 3/8" 3/8"
18" - 23" Aluminum Swinger 3/4" 3/8"
24" Aluminum Swinger 3/4" 3/8"

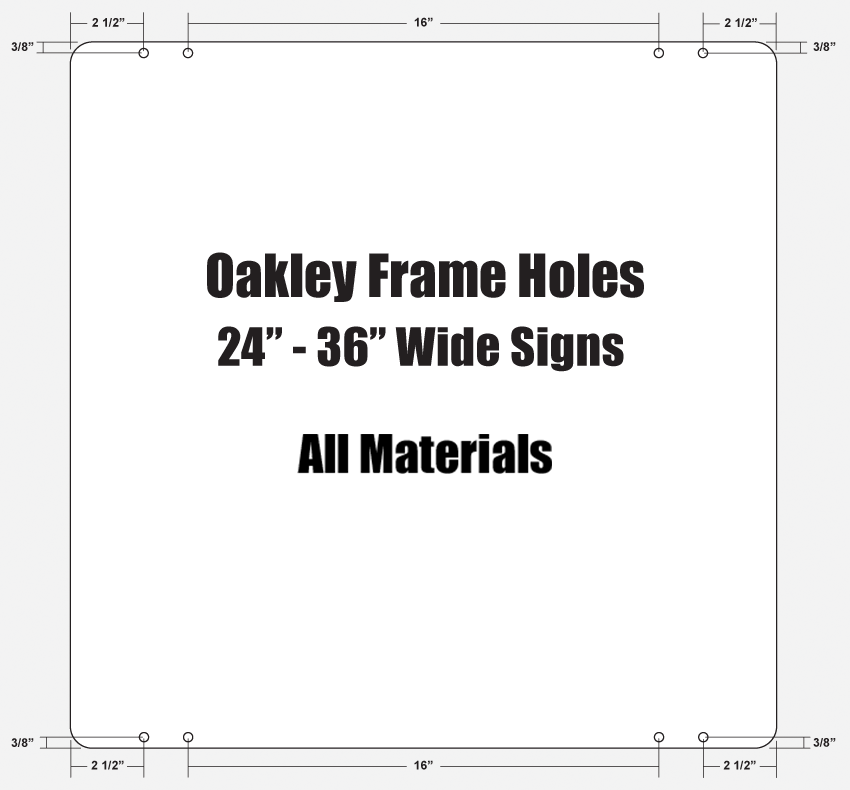

24" - 36" Aluminum Standard 3/8" 3/8"

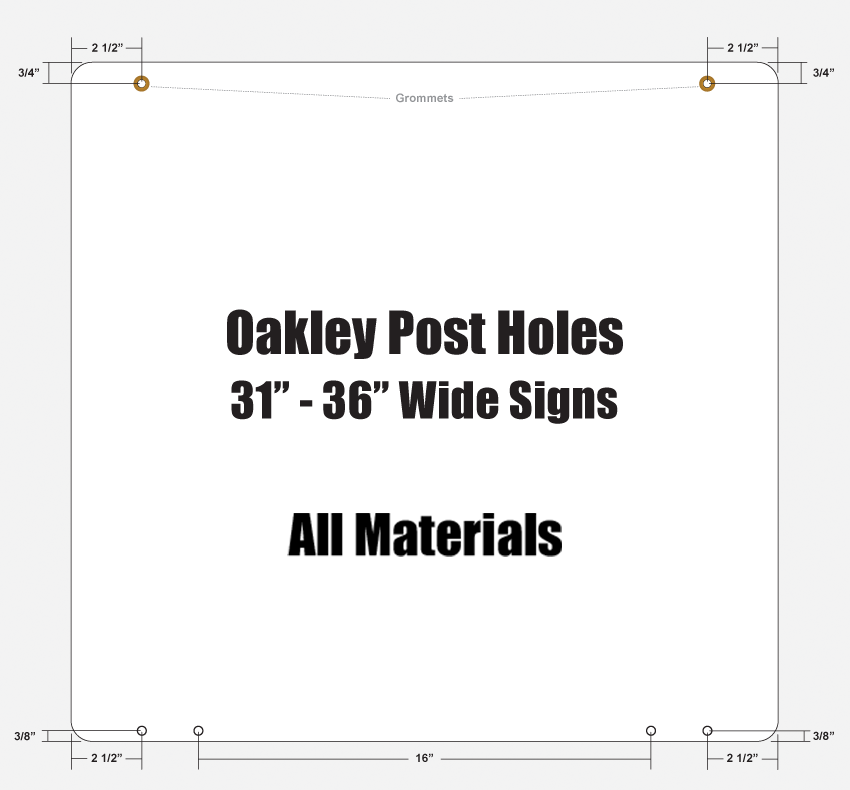

25" - 36" Aluminum Swinger 3/4" 3/8"

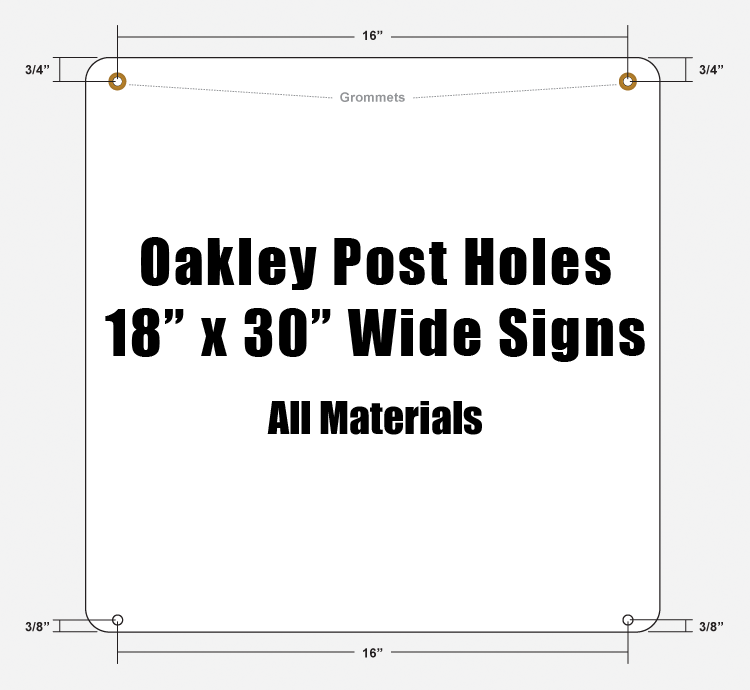

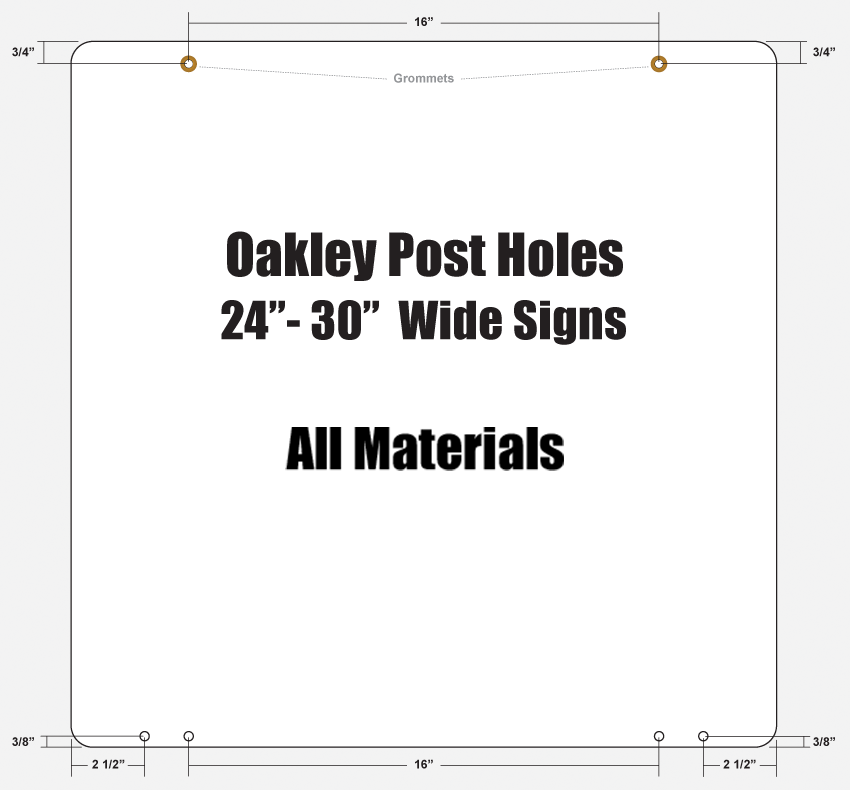

24" - 30" Aluminum POST30 3/4" 3/8"

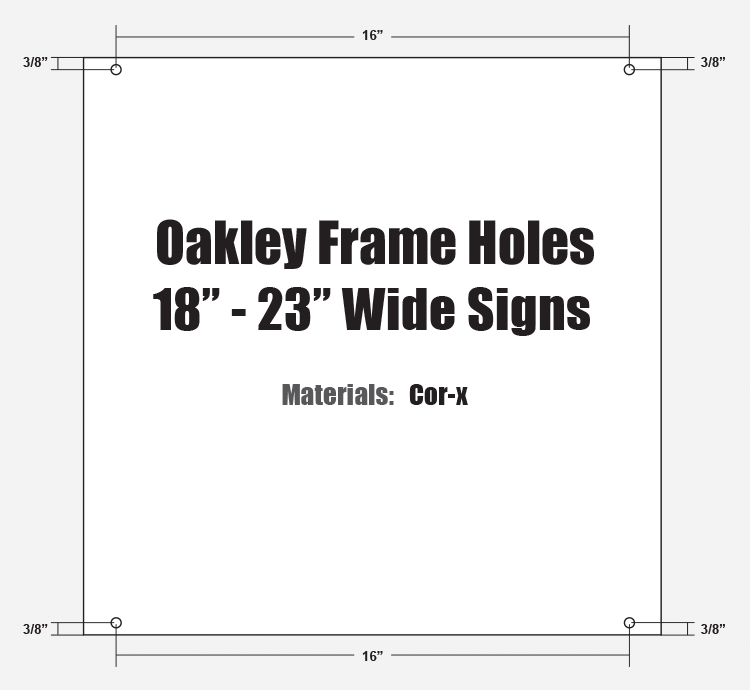

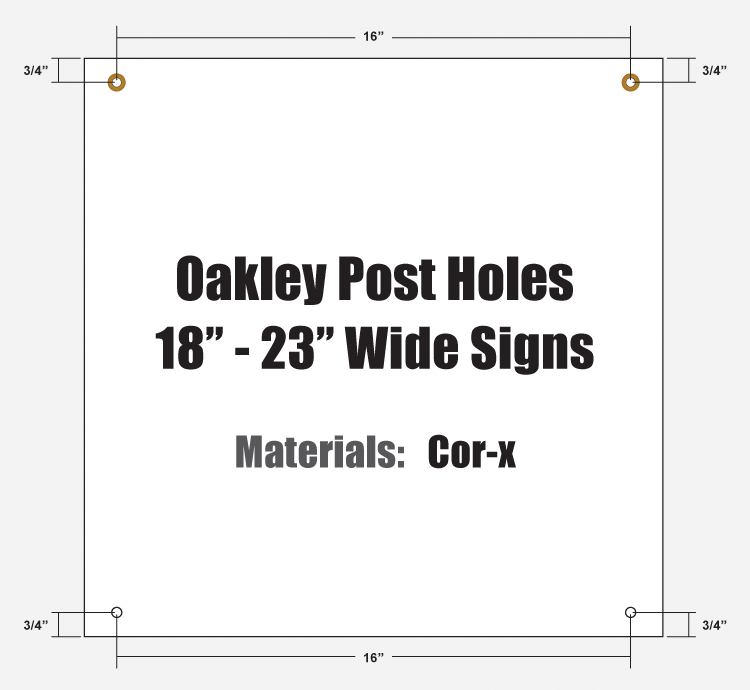

18" - 24" Cor-x Standard 3/4" 3/4"
18" - 24" Cor-x Swinger 3/4" 3/4"

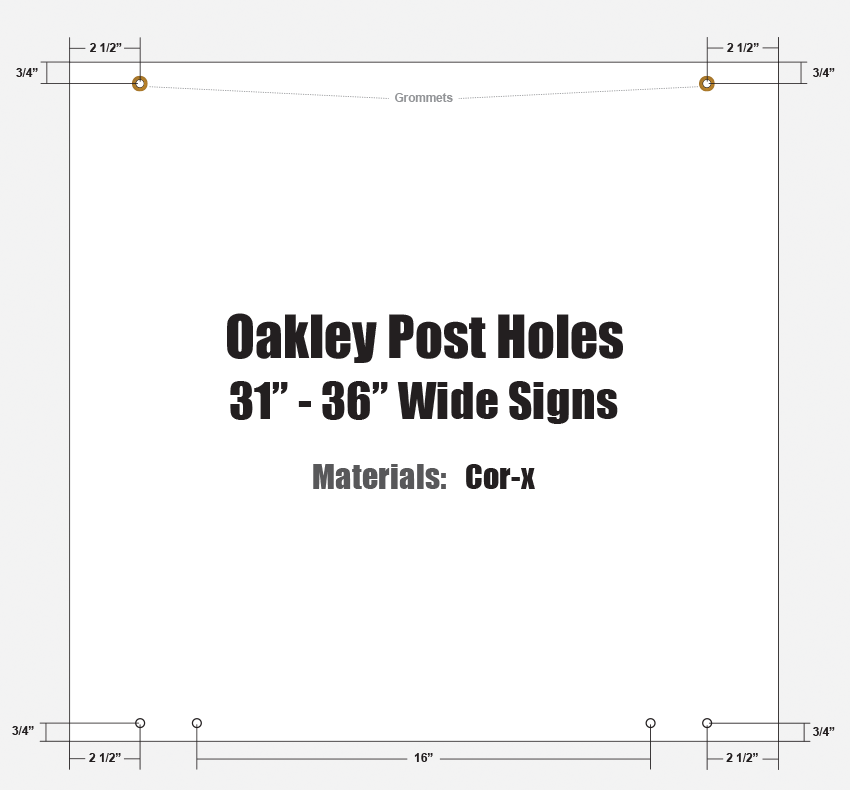

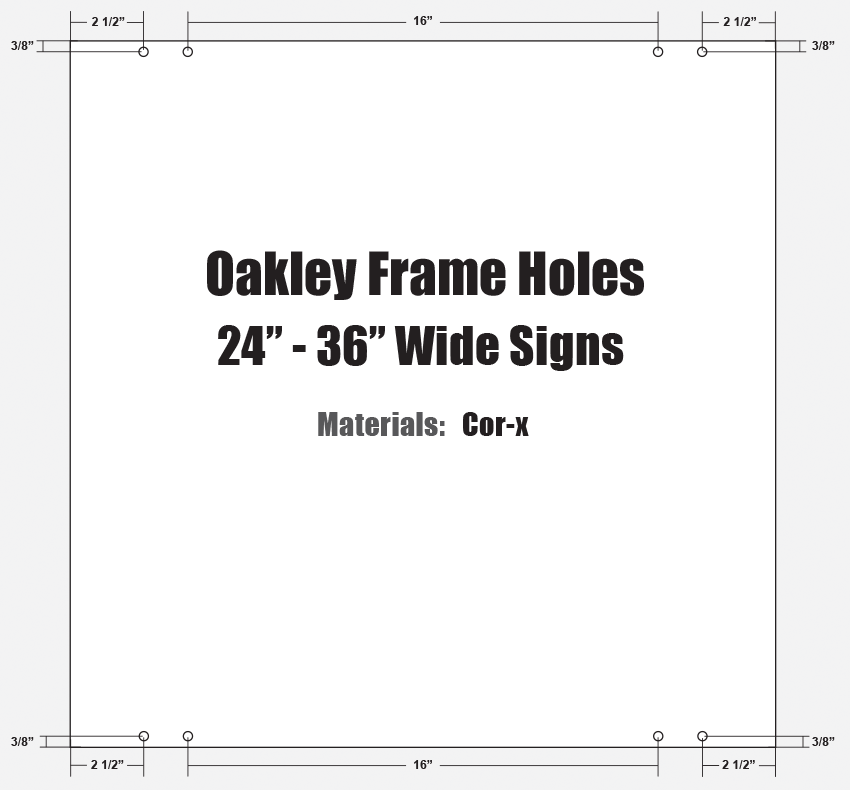

25" - 36" Cor-x Standard 3/4" 3/4"
25" - 36" Cor-x Swinger 3/4" 3/4"

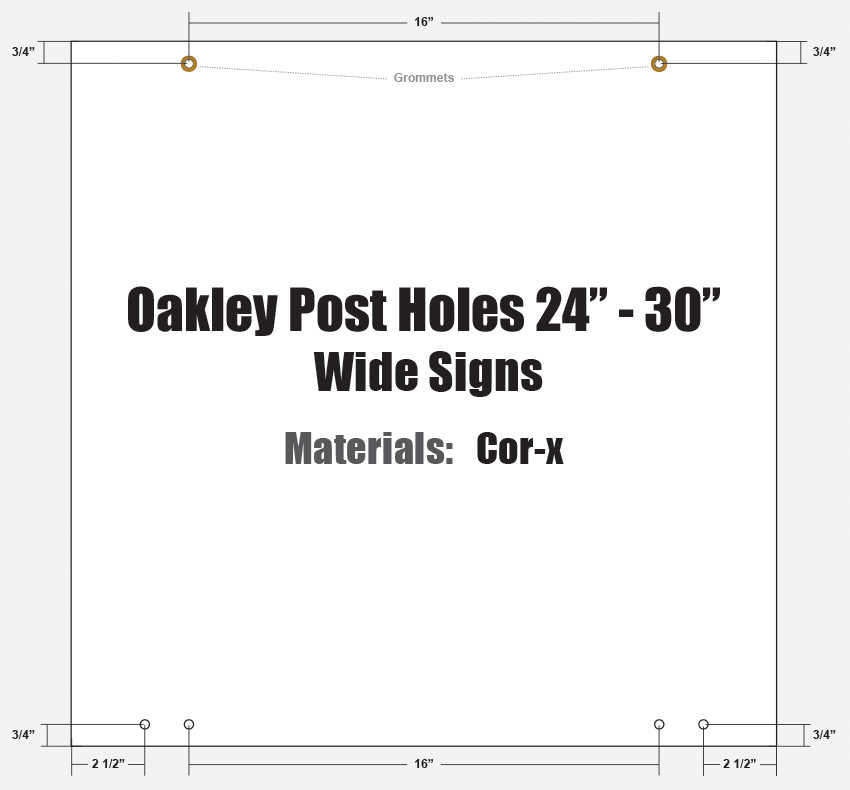

24" - 30" Cor-x POST30 3/4" 3/4"

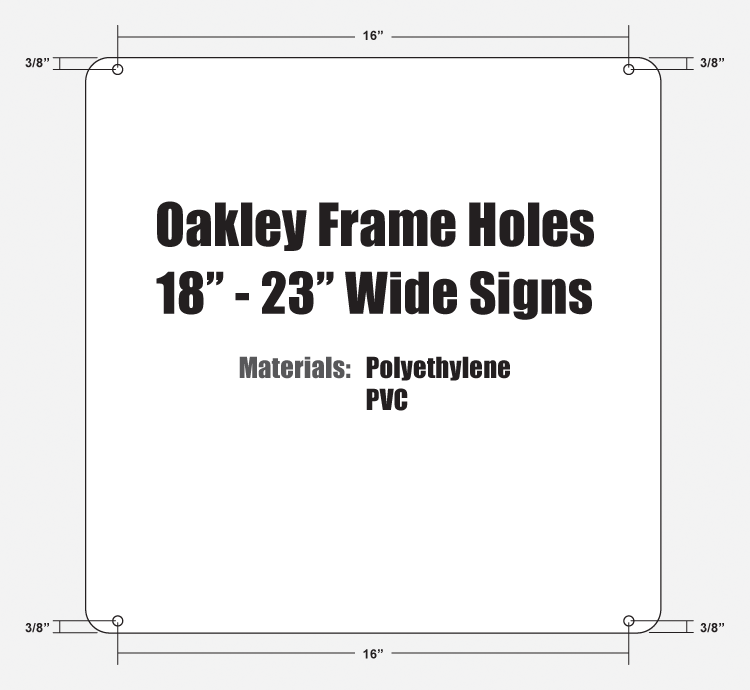

18" - 23" Polyethylene Standard 3/8" 3/8"
18" - 23" Polyethylene Swinger 3/8" 3/8"

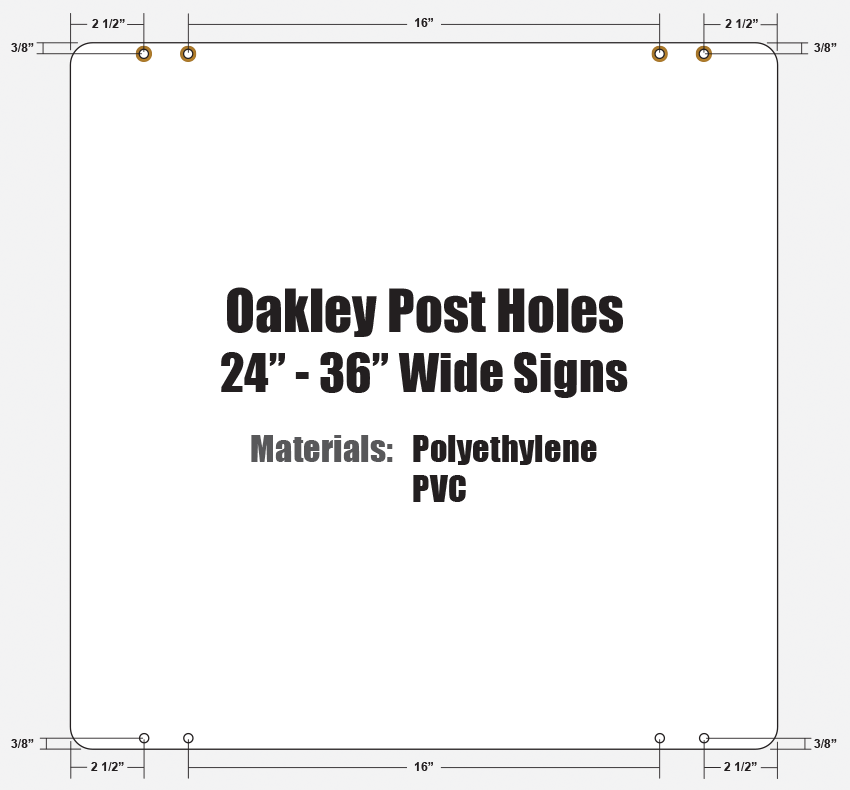

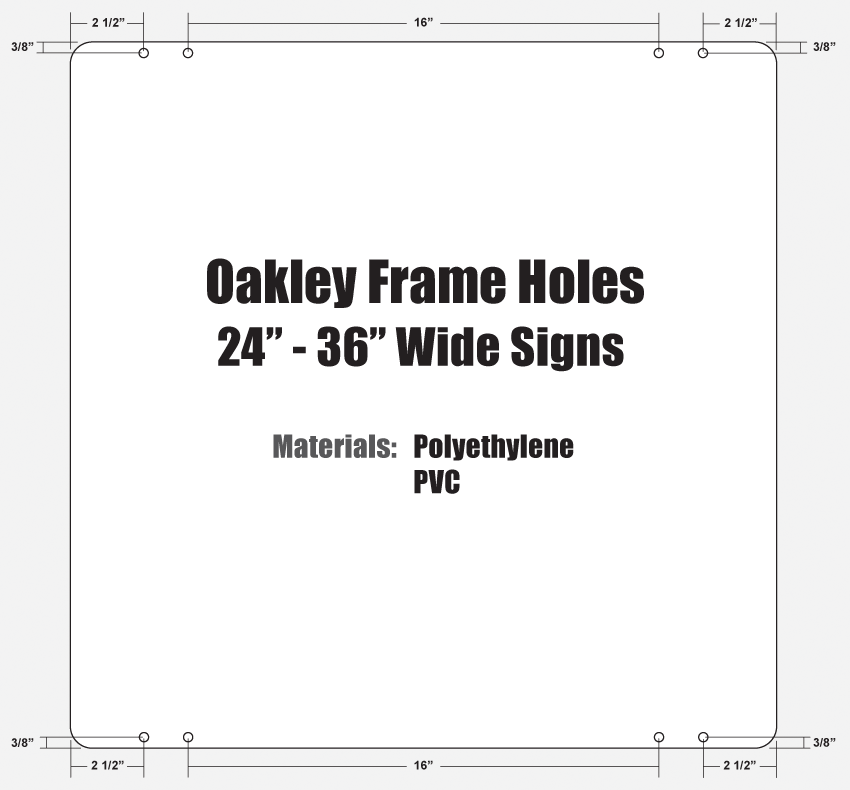

24" - 36" Polyethylene Standard 3/8" 3/8"
24" - 36" Polyethylene Swinger 3/8" 3/8"
18" - 23" Polystyrene Standard 3/8" 3/8"
18" - 23" Polystyrene Swinger 3/8" 3/8"
24" Polystyrene Swinger 3/4" 3/8"
24" - 36" Polystyrene Standard 3/8" 3/8"
24" - 36" Polystyrene Swinger 3/4" 3/8"
24" - 30" Polystyrene POST30 3/4" 3/8"
18" - 23" PVC Standard 3/8" 3/8"
18" - 23" PVC Swinger 3/8" 3/8"
24" - 36" PVC Standard 3/8" 3/8"
24" - 36" PVC Swinger 3/8" 3/8"
18" - 23" Steel Standard 3/8" 3/8"
18" - 23" Steel Swinger 3/8" 3/8"
24" - 36" Steel Standard 3/8" 3/8"
24" - 36" Steel Swinger 3/8" 3/8"
Custom Shape & Speciality Panels
Panel Type Description Image

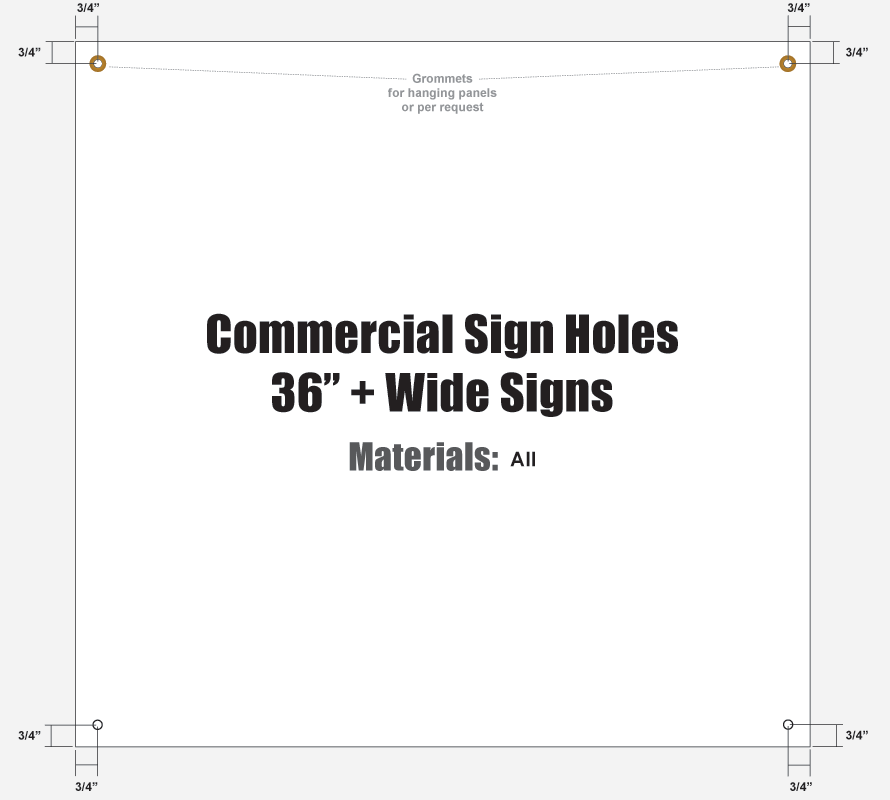

COMMERCIAL SIGNS Used for 36" + Wide Commercial Signs. All Holes are 3/4" from top, bottom, and side edges. 2 Top Grommets are included for hanging panels or per request.

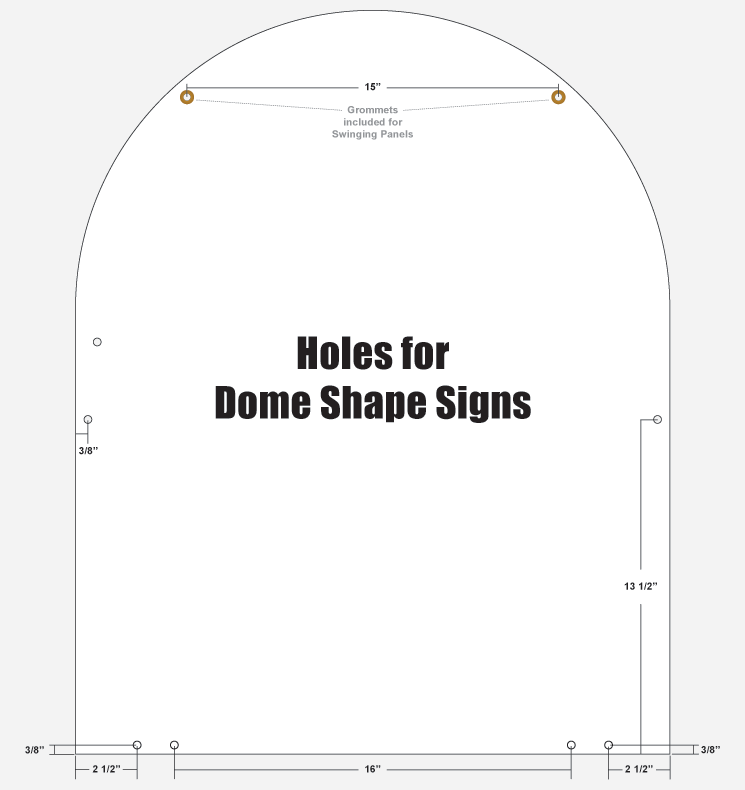

DOME Top Holes: Holes are 15" on center and 3.5" from the top edge. 2 side holes are 13.5" up from the bottom of the panel and 3/8" in from edge. Grommets are included for hanging panels. Bottom Holes: Inside two holes are 16" on center and outside two holes are 2 1/2" from edges. Holes are 3/8" in from the edge. Grommets are included on inside holes for hanging panels (on aluminum and styrene).

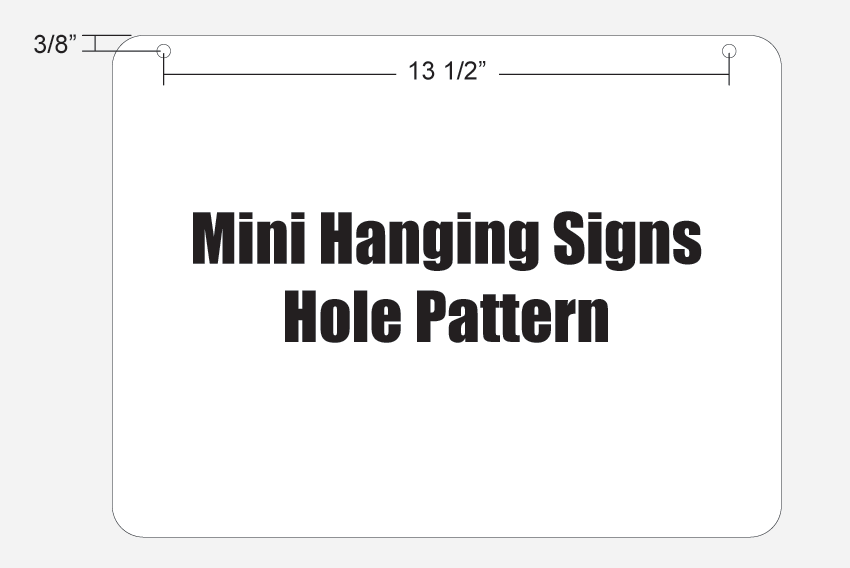

MINI HANGING Top Holes: Two holes are 13.5" on center. Holes are 3/8" in from the edge. Grommets are not included. No bottom holes.
FAIS Stake Top and Bottom Holes: There are two center holes, one top and one bottom. Holes are 3/4" in from the top and bottom edges. Grommets are not included.
